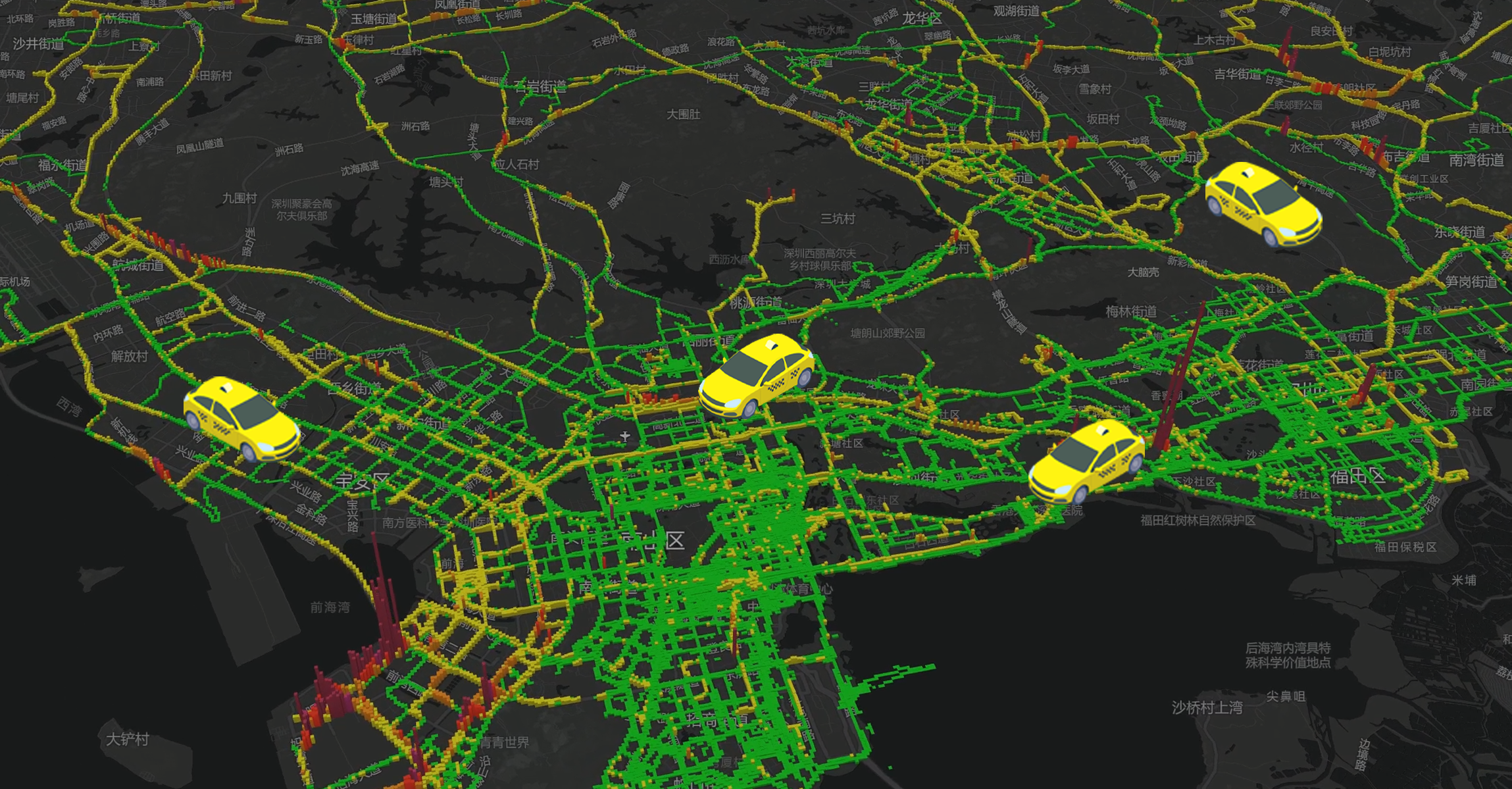

Public Transport Mounted, Massive Data and Insights

Ground-based Environmental Data Acquisition Solutions

Contact Us

Soarability Account Login

Analyze Data from Sniffer4D in Real-Time

3 Types of Visualization

Generate 2D grid, 2D isoline, and 3D point cloud distribution maps of gases & particles in real-time, showing gas concentration and distribution at a glance.

Real-time RGB or Infrared Camera View

Real-time RGB or Infrared camera view can be displayed in Sniffer4D Mapper, helping users to correspond gas concentrations and gas distributions with actual scenes.

Support Target Setting & Navigation

Both onsite and offsite staff can set a Target on Sniffer4D Mapper. The direction and distance to the Target will be displayed on DJI Pilot, and the information will navigate the flight for the pilot, minimizing the information gap between the crews.

Load Historical Data for Analysis and Review

Load Geo-tagged Photos

Users can load geo-tagged photos (e.g. captured using a drone or a mobile phone) to associate the distribution of gas pollution with the corresponding physical photos.

Load Orthophoto (GeoTiff, WGS84)

into the Software

Users can overlay a high-definition orthophoto on top of the obsolete or low-definition satellite map, to better match up high concentration spots with actual scenes.

One-click Generation of

Mission Reports and Datasheets

Users can easily export data into MS Excel, Matlab, R and other software for subsequent collation, analysis and interpretation.

Connect with One or Multiple Sniffer4D(s)

Real-time readings from one or multiple Sniffer4D(s) can be viewed on multiple PCs with Sniffer4D Mapper installed.

Three Built-in Demo Missions

(Drone-mounted, Car-mounted, and Helicopter-mounted)

Users can download Sniffer4D Mapper and run its built-in demo missions for intuitive experience of how Sniffer4D system works before purchase.

Automatic Data Forwarding to the Cloud

Sniffer4D supports real-time data outputting to the specific software platform required by the user (through the MQTT protocol).

While Sniffer4D Mapper supports outputting the decoded data (json format) to a designated IP address through UDP.

Sniffer4D Mapper visualizes and analyzes data from Sniffer4D in real time, provides intuitive information

(e.g. 2D/3D pollution distribution, PDF mission reports) for decision makers.

Sniffer4D Mapper-The Data Visualization and Analytical Software

Sniffer4D Mapper visualizes and analyzes data from Sniffer4D in real time, provides intuitive information (e.g. 2D/3D pollution distribution, PDF mission reports) for decision makers.

Sniffer4D Mapper

The Data Visualization and Analytical Software

넳 넲

· Analyze data from Sniffer4D in real-time.

· Generate point cloud air pollution heat map.

· Support target setting & navigation.

· Display real-time UAS camera view.

· Support screen recording during missions.

· Load historical data for analysis and review.

· Load orthophoto (GeoTiff, WGS84) into the software.

· Load geo-tagged photos.

· Mission report (PDF) generation at one-click.

· Export mission files as a datasheet (CSV).

· Connections with multiple Sniffer4Ds.

· Three built-in demo missions

(drone mounted, car mounted, and helicopter mounted).

· Output decoded Sniffer4D data (json) using MQTT and UDP.

· Automatic software update.

The Software Supports

· Support loading an orthophoto (GeoTiff, WGS84) and displaying it under the

concentration heat maps.

· Support loading geo-tagged photos and showing their locations in the concentration

heat map.

· Support automatic PDF mission report generation.

· Support exporting mission files as a CSV datasheet.

· Track and display multiple Sniffer4Ds simultaneously.

· Display the detailed working status of internally-mounted sensing modules inside the

Sniffer4D. The user can calibrate the sensitivity (slope) and zero point (intercept) of each

module.

· Output decoded Sniffer4D data (json) using UDP.

· Unlimited software installations and automatic software updates.

Sniffer4D Mapper Detailed Specifications

· Display real-time working status of Sniffer4D, including device name, GNSS satellite

number, relative altitude, volume of data to be retrieved. Control Sniffer4D V2's high-

brightness warning LEDs, gas sampling module, and other functionalities.

· Retrieve unreceived data during communication breakdown.

· Display real-time measurement values and their time series graphs.

· Generate real-time 2D grid gas/PM concentration heat map.

· Generate real-time 2D isoline gas/PM concentration heat map.

· Generate real-time 3D point cloud gas/PM concentration heat map.

· Display real-time drone camera view and save geo-tagged screenshots ("Video

Streaming Service" needs to be selected).

· Estimate Fuel Sulfur Content (FSC) using proprietary inversion algorithm.

· Support loading multiple historical data files into the software for post analysis.

ꂃ ꁹ

Downloads

Users can download Sniffer4D Mapper and run its built-in demo missions for intuitive experience of how Sniffer4D system works before purchase.
